Viewstar Sci-tech Co., Limited

Product name : 24 inch LCD Open Frame Monitor
Item : K236D
 Enlarge Image                   Back



Details:

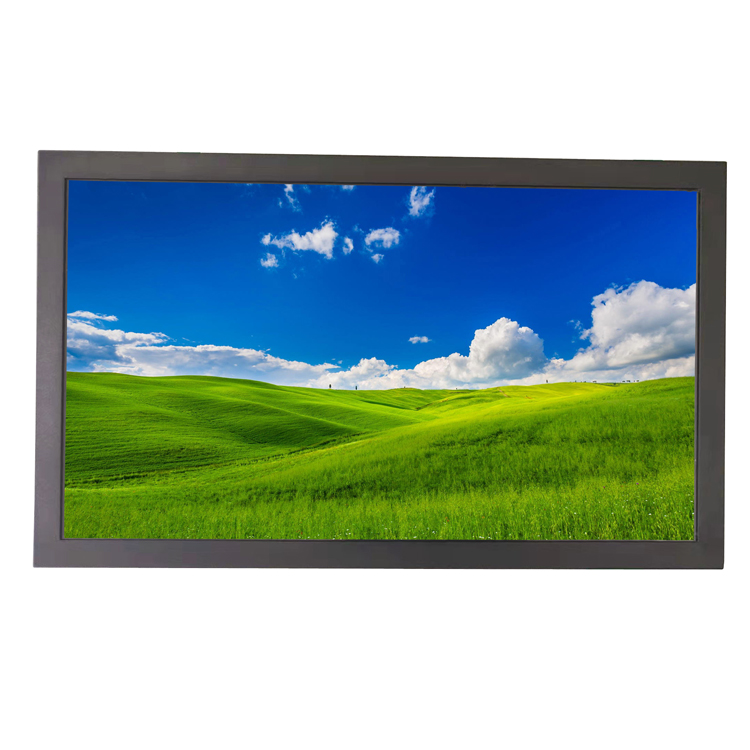

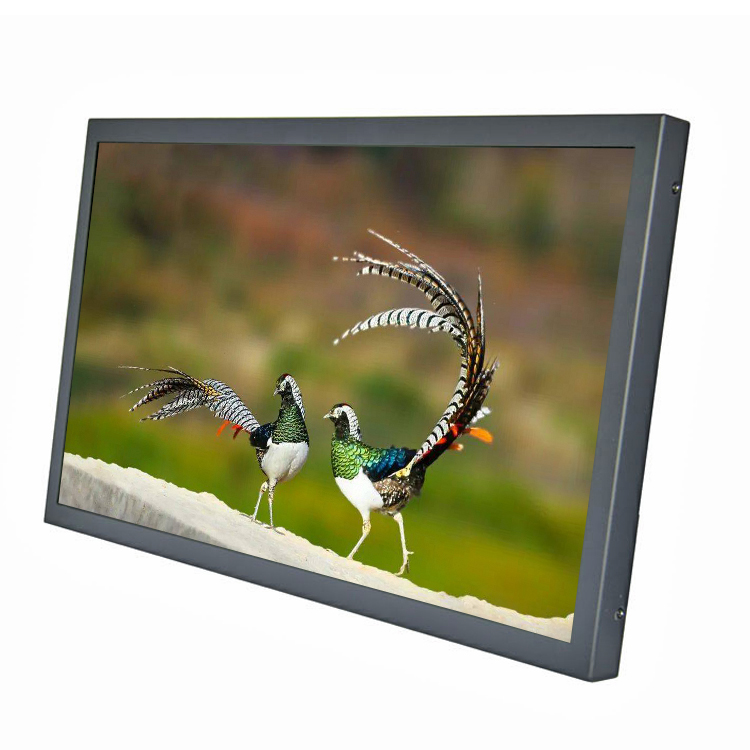

23.6 inch LCD Open Frame Monitor

Key Specifications
System parameters Panel Size 23.6" Digital TFT-LED Pane IPS panel
LCD Panel SAMSUNG/TORISAN/MITSUBISHI
Panel Grade A+ pefect panel
Aspect Ratio 16:9 23.6 inches (diagonal)
Working Voltage DC  12V AC100-240V
Power consumption <35W Typ
Resolutions 1920*1080
Backlight led Backlight
LCD Brightness 400 cd/m2
Input configuraion VGA HDMI
View Angle ±89° or 178° total
Audio system BG/DK/IM/NL
Frequency 30~80KHz/60~75Hz
Operation Environment Workable Temperature:-10 to 60°C
Storage temperature:-20 to 70°C
Operate relative humidity:20% to 80%;
storage relative humidity:10% to 90%
Chromatic System PAL/NTSC Auto Switch
Duration 50000hours
Operation system DOS/Window 9X,ME,2K,XP,7 Vista, NT, CE,LINUX,
Mac  win7  win8 win10

Accessories 1pcs LCD Monitor
1pcs Instruction Manual
1pcs VGA Cable
Some Screw for Fixing the Shelf
