Viewstar Sci-tech Co., Limited

Product name : 12 Inch Open Frame LCD Monitor
Item : K120D
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

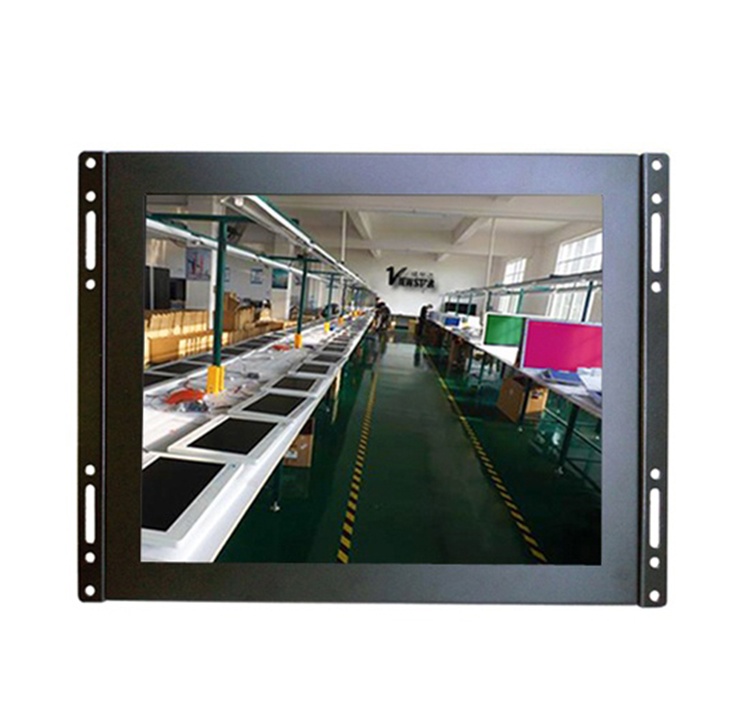

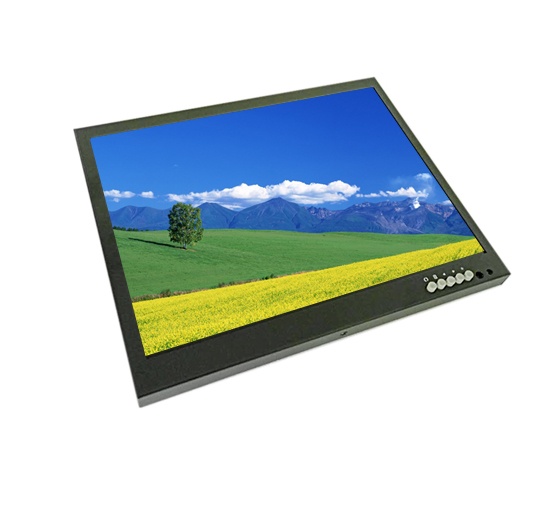

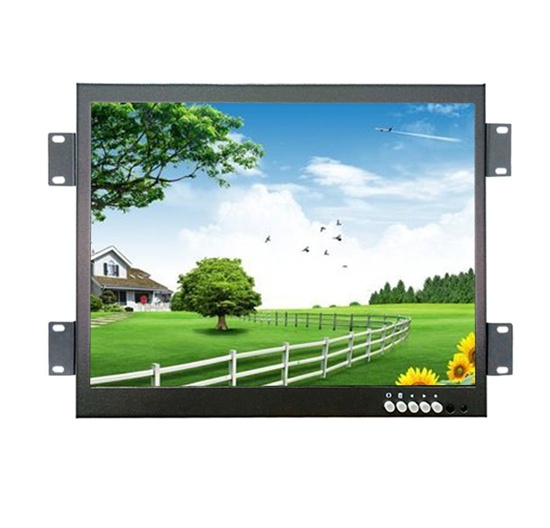

 12 Inch Open Frame LCD Monitor

Key Specifications
System parameters Panel Size 12" Digital TFT-LCD Panel
LCD Panel SAMSUNG/TORISAN/MITSUBISHI
Panel Grade A+ pefect panel
Aspect Ratio 4:3  12 inches (diagonal)
Working Voltage DC  12V AC100-240V
Power consumption <10W Typ
Resolutions 1024(H)×768(V)
Backlight CCFL Backlight
LCD Brightness 300 cd/m2

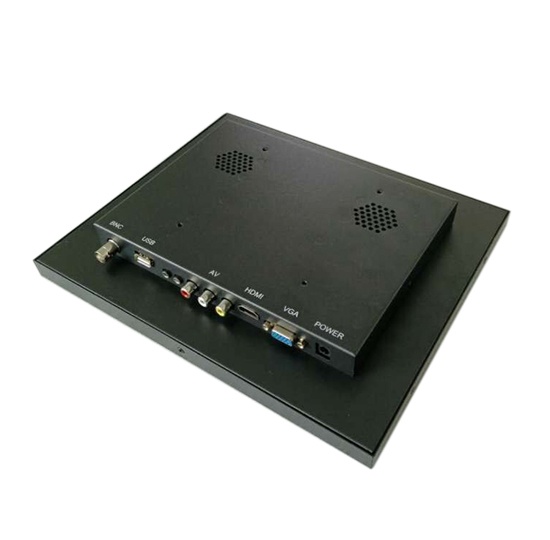

Input configuraion VGA+AV+HDMI+BNC+SPK
View Angle 160/160deg
Adjust Angle Horizontal:160° Vertical:140°
Audio system BG/DK/IM/NL
Frequency 30~80KHz/60~75Hz
Operation Environment Workable Temperature:-10 to 60°C
Storage temperature:-20 to 70°C
Operate relative humidity:20% to 80%;
storage relative humidity:10% to 90%
Chromatic System PAL/NTSC Auto Switch
Duration 50000hours
touch validity >1,000,000
Operation system DOS/Window 9X,ME,2K,XP,7 Vista, NT, CE,LINUX,
Mac  win7  win8 win10

Accessories 1pcs LCD Monitor
1pcs Instruction Manual
1pcs VGA Cable
Some Screw for Fixing the Shelf
