Products >> Metal Case Nontouch Monitor >> 15 Inch Open Frame Lcd Monitor

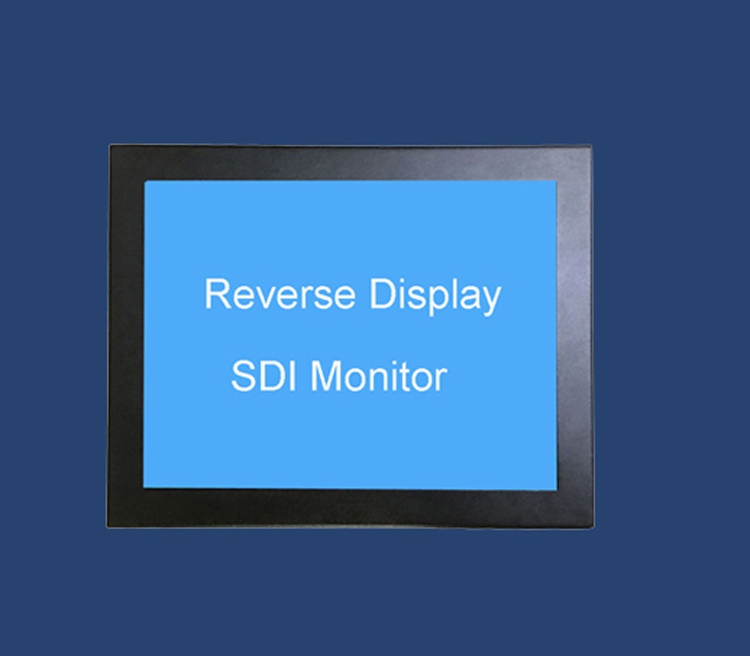

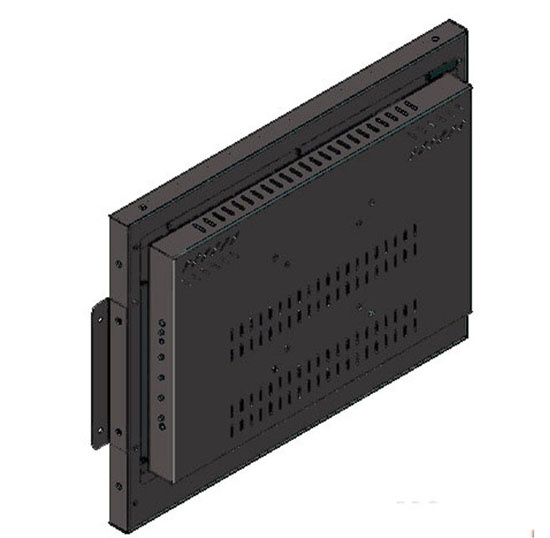

15 Inch Open Frame Lcd CCTV Monitor

Key Specifications
System parameters	Panel Size	15" Digital TFT-LED Panel
	LCD Panel	SAMSUNG/TORISAN/MITSUBISHI
	Panel Grade	A+ pefect panel
	Aspect Ratio	4:3 15 inches (diagonal)
	Working Voltage	DC 12V AC100-240V
	Power consumption	<15W Typ
	Resolutions	1024(H)×768(V)
	Backlight	LED Backlight
	LCD Brightness	300-1000 cd/m2

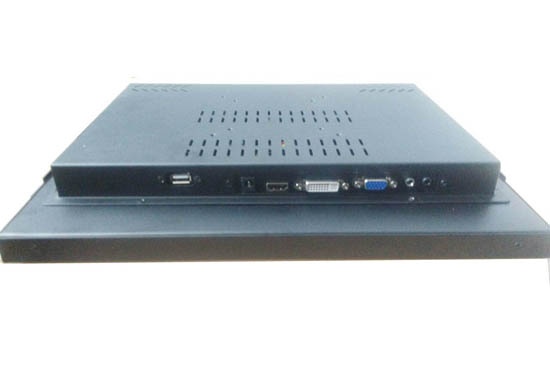

	Input configuraion	SDI IN SDI OUT, 2AVin ,1*AV out, HDMI,USB ,VGA,DC12V
	View Angle	160/160deg
	Adjust Angle	Horizontal:160° Vertical:140°
	Audio system	BG/DK/I、M/N、L
	Frequency	30~80KHz/60~75Hz
	Operation Environment	Workable Temperature:-10 to 60°C
		Storage temperature:-20 to 70°C
		Operate relative humidity:20% to 80%;
		storage relative humidity:10% to 90%
	Chromatic System	PAL/NTSC Auto Switch
	Duration	50000hours
	Operation system	DOS/Window 9X,ME,2K,XP,7 Vista, NT, CE,LINUX,
		Mac win7 win8 win10
Accessories	1pcs LCD Monitor
	1pcs Instruction Manual
	1pcs VGA Cable
	Some Screw for Fixing the Shelf
